Sky Hub Series
A smart streetlamp first. A drone-charging hub second. AI-native low-altitude infrastructure.
Tier 0–2 is a full smart pole. Add the rooftop drone hangar and Qi resonant charging to upgrade modularly — DJI Dock 3 compatible.
- Police
- Fire
- Ports
- Pipelines
- Last-Mile Delivery

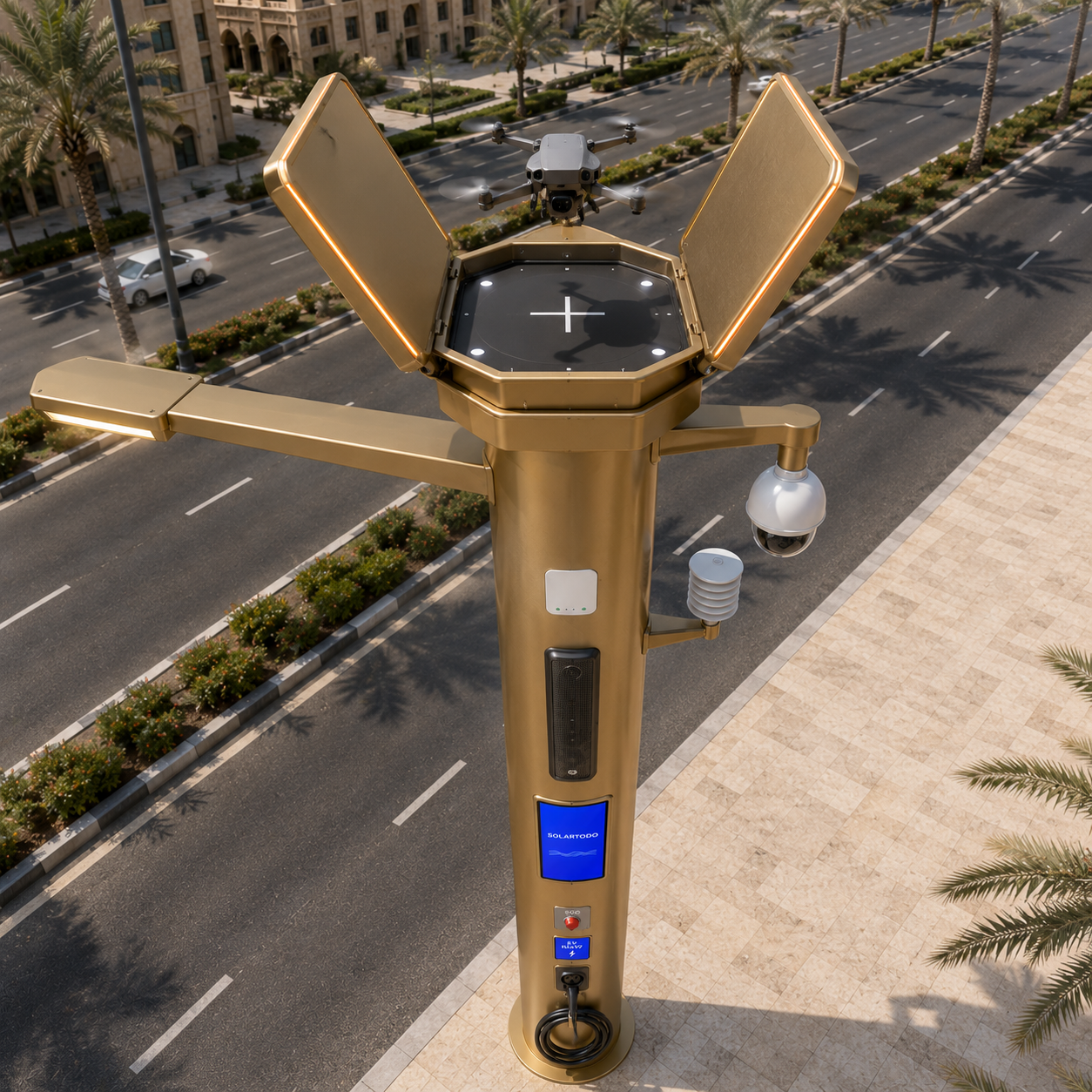

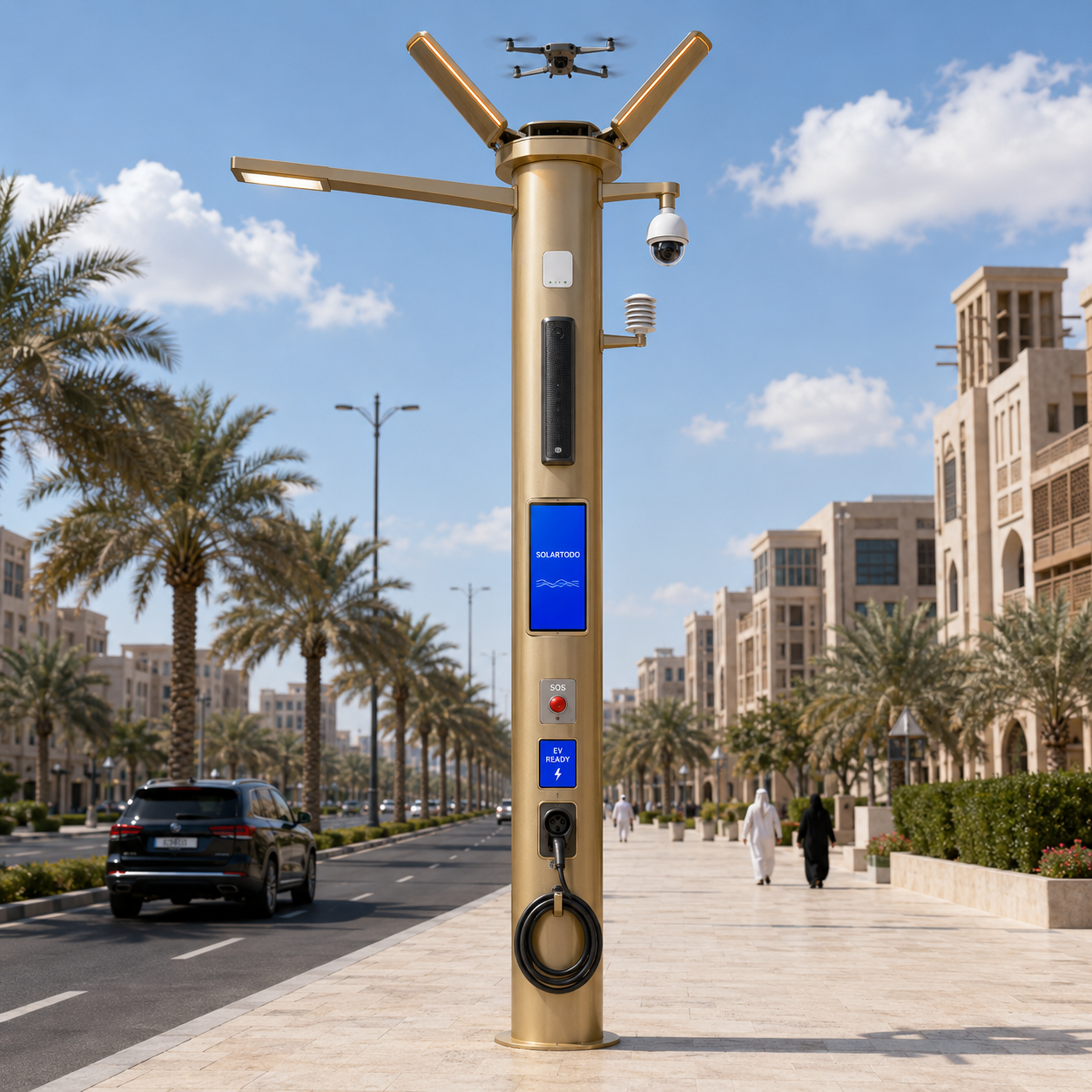

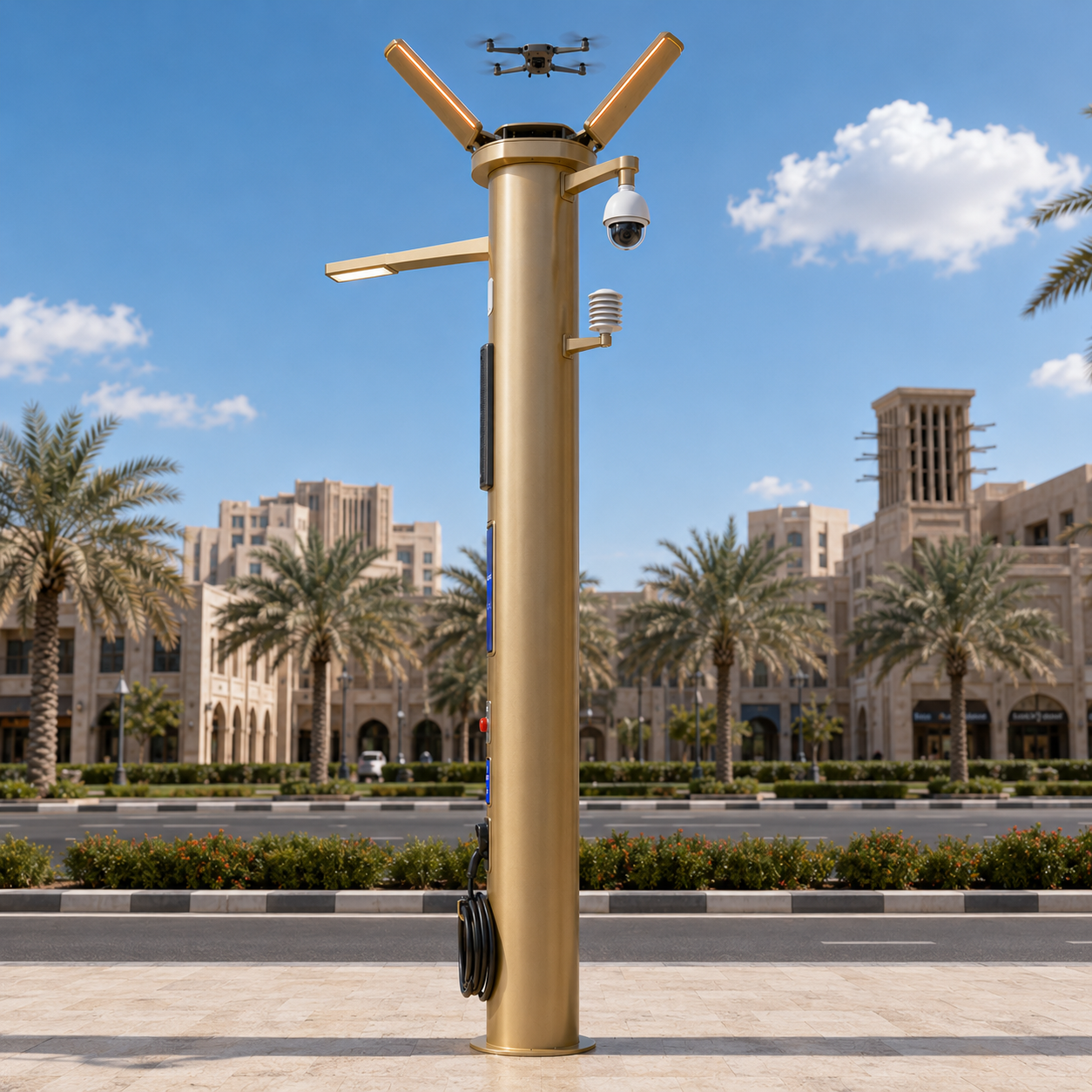

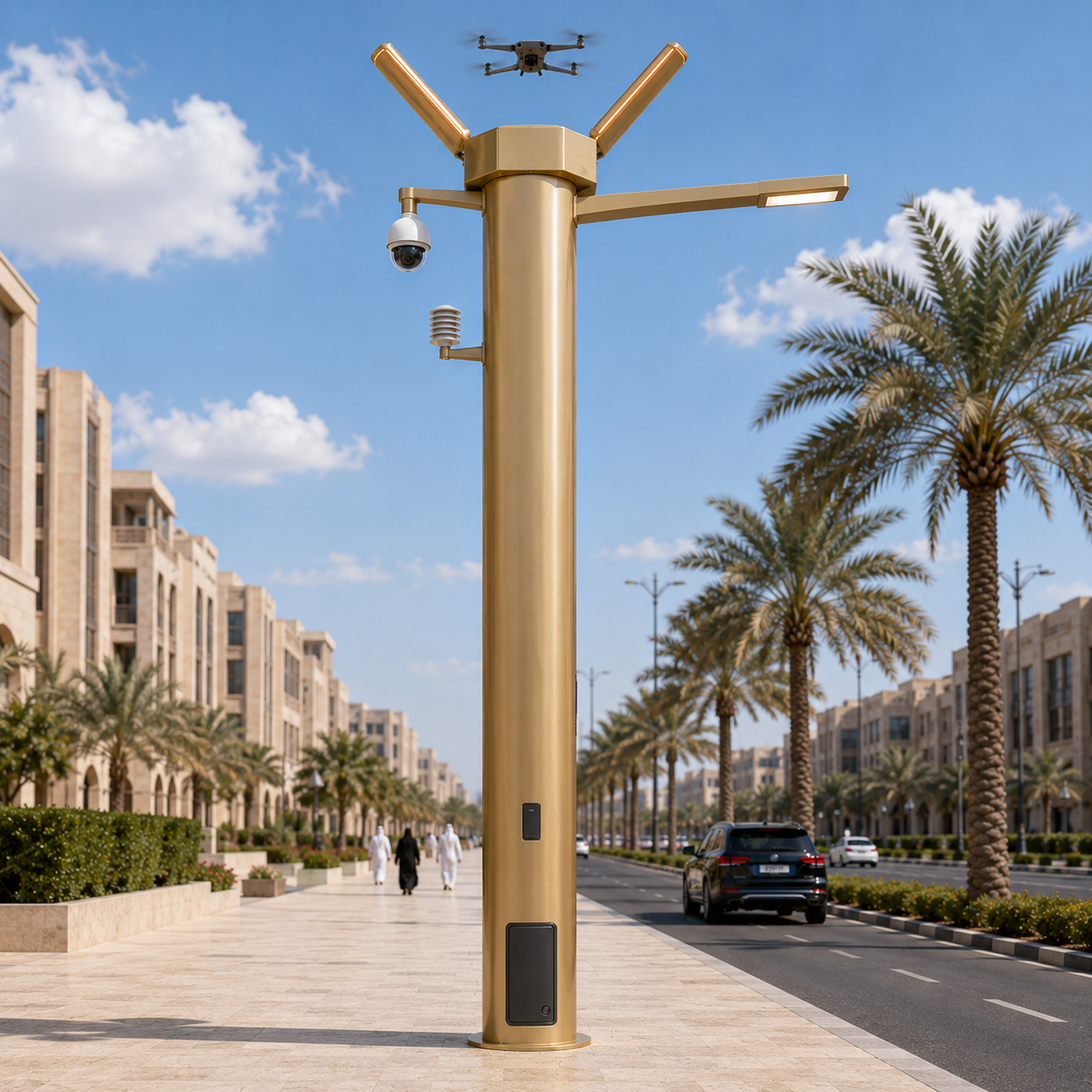

Product views
Every angle, before you commit.
KEY POSITIONING
Smart streetlamp first.
Drone hangar second.
Every Sky Hub ships as a fully-loaded 10-in-1 smart streetlamp — LED, 4K PTZ, 5G, edge AI, info screen, EV charge, SOS, sensors. The drone hangar is a field-installable upgrade module. Buy the pole now, add the hangar later.
Tier 0-2
Smart streetlamp
LED · 4K PTZ · 5G · edge AI · SOS · EV charge · sensors
Tier 3 Upgrade
Drone hangar
DJI Dock 3 compatible · charge OR battery-swap · 24/7 flight
COMPATIBLE DRONES
DJI Dock 3 compatible. Skydio / Autel / open-API ready.
Sky Hub mechanical envelope follows DJI Dock 3 specifications (760-1200mm clamshell). Open-API integration available for non-DJI fleets and custom OEM drones.
DJI
PrimaryMatrice 4D / 4TD
MTOW <10 kg
Primary patrol + thermal dual-light
DJI
SecondaryMavic 3E
MTOW <2 kg
Light-payload secondary patrol
Skydio
SecondaryX10
MTOW <3 kg
Obstacle-avoidance interior
Autel
OptionalEvo Max 4T
MTOW <10 kg
Heavy-payload alternative
Custom
Open APIOpen-API drone
MTOW any
WiFi/4G uplink + Qi or contact charging
Custom
SwapBattery-swap compatible
MTOW <25 kg
Magazine of 1-2 / 4-8 hot-swap batteries
ENERGY METHOD
Charge for 25 minutes. Or swap in 30 seconds.
Two energy methods, configurable per-pole. Routine patrol cycles use charging. Mission-critical applications (airport perimeter, oil-pipeline emergencies, mass-event security, port surveillance) use battery-swap for 24/7 non-stop flight.
Method A
Compatible with DJI Dock 3Wireless Charging
4 methods: contact-pad auto-dock, Qi inductive, resonant wireless, long-range laser (R&D). Up to 1000W charging power.
Full charge
25-50 min
15% → 95% SoC
Best for
Routine patrol with predictable cycles
Method B · Featured
24/7 non-stop flightRobotic Battery-Swap
Mechanical arm swaps depleted battery with a fresh one from a magazine of 1-2 (compact) or 4-8 (heavy-duty) spares. Same hangar enclosure as DJI Dock 3 mechanical envelope.
Swap time
30-60 sec
vs 25-50 min charging
Best for
Mission-critical · airport security · pipeline emergency
Foia / Duoyi / Heisha class · Pole-integrated · Open compatibility
Application scenarios
Where this platform performs.
Police patrol drone shelters
Fire-inspection drone bases at industrial parks
Oil + gas pipeline inspection hubs
Port and dock perimeter security
Last-mile drone-delivery terminals
Theme-park overhead patrols at peak hours
Engineering specifications
Every parameter, on the public record.
Full DOM table for procurement-grade evaluation. No PDF wall, no signup gate. Every row is canonical and machine-readable for AI engines.
| Parameter | Available options |
|---|---|
| Pole height | 6 / 8 / 10 / 12 / 14 m |
| Drone hangar size | 760×760 / 1000×1000 / 1200×1200 mm |
| Hangar opening time | 30 / 45 / 60 s |
| Energy method | (A) Charge: contact / Qi inductive / resonant / laser long-distance (R&D) — OR — (B) Robotic battery-swap arm (1-2 or 4-8 spare batteries) |
| Charging power | 100 / 200 / 500 / 1000 W (charge mode only) |
| Full-charge / swap | 25–50 min charge mode · 30–60 sec battery-swap mode (24/7 non-stop flight) |
| Compatible drones | DJI Matrice 4D/4TD · Mavic 3E · Skydio X10 · Autel Evo Max · Custom |
| Drone MTOW | <3 / <6 / <10 / <25 kg |
| RTK accuracy | 1 cm + 1 ppm |
| Wind tolerance | 8 / 12 / 15 m/s |
| Operating temp | -20 °C ~ +50 °C / heated -30 °C ~ +50 °C |
| IP rating | IP55 / IP56 / IP66 (closed) |
| Comms | 4G LTE / 5G Sub-6 / 5G mmWave |
| Edge AI | Jetson Orin Nano / NX / AGX, 8–275 TOPS · Ascend 310/610 · Hailo-8 |
| Power | AC 220V / Solar + battery / Wind-solar hybrid |
| Backup battery | 100–500 Ah |
| Flight radius | 3 / 5 / 7 / 10 km |
| Ops platform | DJI FlightHub 2 / FlytBase / Open API |
| On-pole camera | 4K 30x / 8K 50x / 4K + thermal dual-light |
| LED street light | 80–200 W |
| Auto modes | Scheduled patrol / Event-triggered / Remote / AI route |
| Multi-function modules | 70+ pluggable; Sky Hub-exclusive: DJI Dock, robotic battery-swap hangar (1-2 / 4-8 spare batteries — Foia/Duoyi/Heisha class), Qi resonant 100–1000W, RTK, 5G-A ISAC, smart locker, anti-drone counter |
| Certifications | CE · FCC · FAA Part 107 · EASA compatible |
23 canonical parameters · FOB Asia main port · Subject to MOQ & project spec
Pricing tiers
From standard SKU to Moon-on-Demand.
Indicative price ranges — FOB Asia main port. Final quote depends on spec, MOQ, country, and lead time. Use the AI calculator for live BOM.
- Tier Ⅰ
Basic
8m + pole-integrated contact charging OR robotic battery-swap 1 spare
USD 10 000 – 18 000
- Tier Ⅱ
Standard
10m + DJI Dock 3 + Matrice 4D OR robotic swap 1-2 spare + RTK + 5G + 4K cam
USD 22 000 – 40 000
- Tier Ⅲ
Premium
12m + large hangar 500W charge OR 4-8 spare battery-swap + edge AI + multi-drone + hybrid
USD 50 000 – 100 000
- Tier ⅣCustom
Moon-on-Demand
City-scale multi-pole mesh + dispatch + heavy-duty 4-8 swap + smart-locker + counter-drone laser
USD 500 000 +
Project tools
Configure, quote, and qualify — all self-serve.
Why this platform
Six engineering bets you don't see in commodity poles.
- 01
Smart Pole First
Tier 0–2 is a complete smart streetlamp: LED, PTZ, 5G, edge AI, USB-C, SOS. Drone hangar is optional Tier 3.
- 02
DJI Dock 3 Compatible
Out-of-the-box support for Matrice 4D / 4TD / Mavic 3E. Open API for Skydio, Autel, custom OEM drones.
- 03
Charge OR Battery-Swap
(A) 4 charging methods: contact auto-mate (highest power), Qi inductive, resonant, long-range laser (R&D). (B) Robotic battery-swap arm — 30-60 sec turnaround for 24/7 non-stop flight (Foia / Duoyi / Heisha class).
- 04
RTK + 5G-A ISAC
Cm-level positioning + integrated communication / sensing radar. Detect, locate, classify low-altitude targets.
- 05
275 TOPS Edge AI
NVIDIA AGX Orin / Ascend 610 — multi-drone path planning, anomaly detection, smart-locker fulfilment, all on-pole.
- 06
Anti-Drone Counter
Compliant EMI jamming for unauthorised UAVs. Police / military-friendly licensing path.
Configuration Guides
Solutions & Configuration Guides
Market analysis and configuration guides based on real RFQ requirements. From Saudi Vision 2030 heritage districts to Latin American theme parks — we engineer the form your project demands. Pilot Program open for the first customers in each market.
Procurement FAQ
Sourced from the questions Ethan answers daily.
- A smart pole drone docking station combines a fully-functional smart streetlight (LED + 4K PTZ camera + 5G + USB charging) with a top-mounted drone docking module supporting automatic landing, wireless charging, and remote takeoff. SOLARTODO Sky Hub Series is engineered for warehouse perimeters, port security, oil pipeline patrol, and last-mile logistics.
- Yes. SOLARTODO Sky Hub is engineered to be compatible with DJI Dock 3, DJI Matrice 4D/4TD, Mavic 3E, Skydio X10, and Autel Evo Max. Wireless charging supports Qi resonant from 100W to 1000W; full charge from 15% to 95% takes 25-50 minutes. RTK precision 1 cm + 1 ppm.
- Sky Hub pricing starts at $12,000-18,000 for entry tier (8m smart pole + small dock + Qi 100W + DJI Dock 3 compatible). Standard tier $25,000-40,000 (10m + 200W charging + RTK + 5G + 4K camera). Premium $50,000-85,000 (12m + 500W charging + edge AI + multi-model support). Signature tier $500,000+ for city-scale multi-pole networks. FOB Asia main port. MOQ negotiable.
- Sky Hub supports drone takeoff in 8 m/s standard, 12 m/s reinforced, and 15 m/s heavy-duty configurations. Operating temperature -20°C to +50°C standard; -30°C to +50°C with heating module. IP55/56/66 enclosure (closed state).
- Standard production 4-8 weeks + shipping (FOB Asia main port). On-site installation typically 5-10 days per pole with our engineering support team. Warranty: 2 years standard, 5 years extended available on premium tier. Spare parts available 10+ years post-purchase.
- Standard products: 4-8 weeks production + shipping. Custom Iconic / Selfie large projects: 12-24 weeks depending on customization depth. Drone-equipped Sky Hub: 6-10 weeks (DJI Dock 3 integration). Sea freight 20-45 days to major ports (Jeddah / Dubai / Manzanillo / Santos / Singapore). Always open to discussion based on project urgency.
- Standard: TT 30/70 (30% advance + 70% before shipment). Alternative: LC at sight (preferred for $50K+). Custom Iconic / Selfie large projects: TT 30/40/30 (30% advance + 40% mid-production + 30% before shipment). Government / sovereign clients: open to LC 90 days or escrow via Stripe Atlas. Wise / USDT accepted for orders under $50K.
- Yes. Bank financing and sovereign guarantee financing available for projects above $500,000. SINOSURE coverage available for export contracts (China Export & Credit Insurance Corporation). Project finance structures: 30% down + 70% over 36 months. Contact [email protected] for project-specific financing.
- We engineer to support direct B2B with engineering partners in: KSA (Riyadh), UAE (Dubai), Mexico (CDMX), Brazil (São Paulo), Vietnam (Hanoi), Indonesia (Jakarta), South Africa (Cape Town). Local agent arrangements available for sustained 50+ pole annual volume. Initial RFQ always direct via [email protected] to ensure pricing transparency.
- Jiangsu Province, China. SOLARTODO LIMITED founded 2014. 30,000 m² production facility. Engineered to support deployment across 40+ countries. We welcome factory audit visits — contact [email protected] to schedule, or watch our 24/7 live showroom on YouTube @solartodo (W7+ live).
- All products: CE · RoHS · SASO · IEC series · FCC · IK10 (IK09 for CIGS) · ISO 27001 information security. Product-specific: Sky Hub adds IEC 61347 luminaire + IEC 62133 battery + FAA Part 107 compatible. Coastal adds IEC 61400-2 wind turbine. CIGS adds IEC 61646 thin-film. Family IP adds EN 1176 + ASTM F1487 playground safety + GDPR Article 8 children data. Certificate numbers and test reports available upon RFQ from our engineering team.
- Sky Hub: smart streetlight + drone hangar for security / patrol / logistics. Coastal: wind-solar hybrid off-grid pole for harsh climates (coastline / island / desert / oilfield). CIGS: 360° thin-film pole for premium architectural sites (CBD / hotels / airports). Family IP: animal-character poles for children's parks / theme parks / family attractions. Iconic: cultural monument pillars for heritage walks / Vision 2030 / signature landmarks. Selfie: social-media installations for tourist photo spots / brand activations.
